Specialty Chemical
Home > Products > Specialty Chemical > Support Media Equal To Inert Porcelain Ceramic Ball Alumina Ball Used For Industrial Gas

Support Media Equal To Inert Porcelain Ceramic Ball Alumina Ball Used For Industrial Gas

Chemical Properties


Min %

Max %

SiO2

64.0

75

Al2O3

19.0

26

Fe2O3

 1.3

1.5

TiO2

1.2

1.5

CaO

0.2

0.5

MgO

0.2

0.5

Na2O

0.4

0.6

K2O

4.3

4.8

Mass Density

(kg/m3)

1400-2400

Resistance to Temperature

  (C°)

1000

Specific Heat

(kcal/C°/kg)

0.2

Thermal conductivity

(KCAL/m.h.C°)

1.5

Force of clogging

 (N/mm2)

400

Heat of adsorption

Kcal/kg of water

1000

Melting point

(C°)

1400

Hardness

(Mohs scale)

8

Auto-inflammation

Does not ignite spontaneously

Solubility with water

Insoluble

Content of solid product

100%


PRODUCTS DESCRIPTION

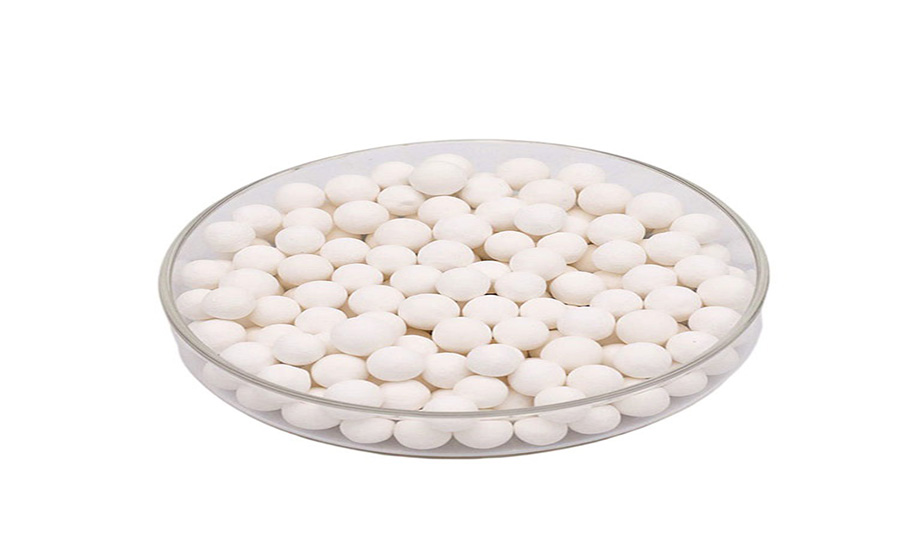

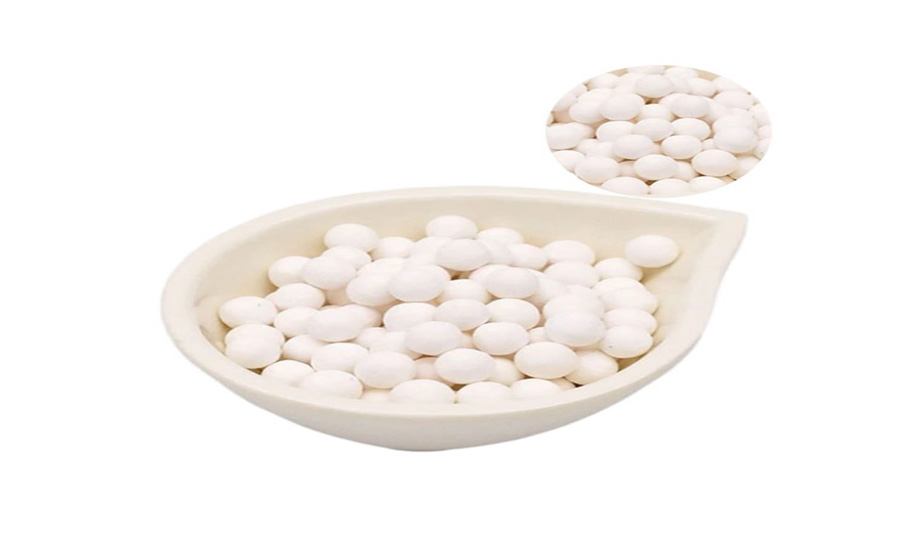

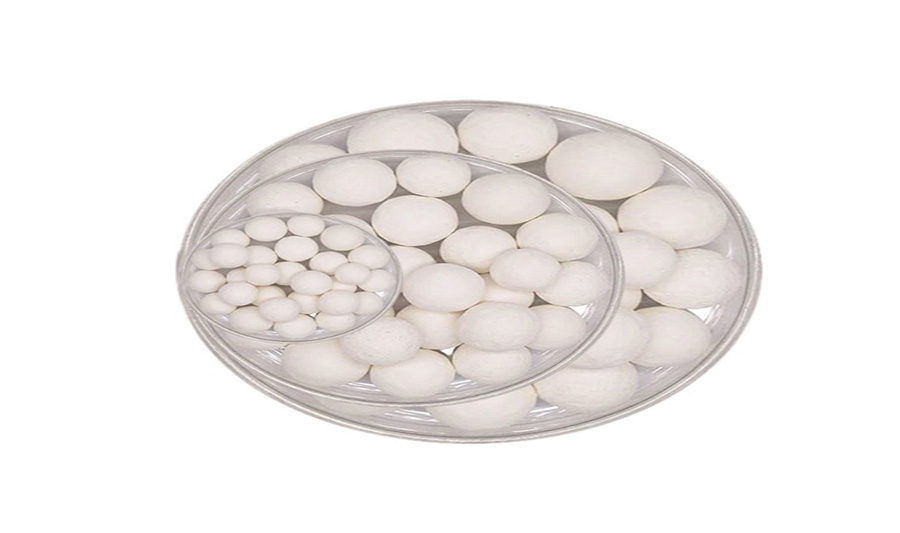

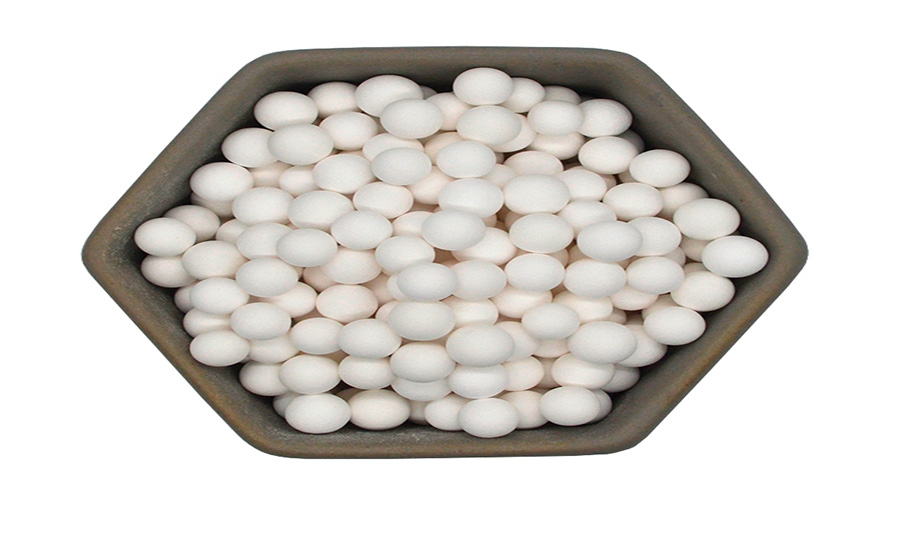

Inert Porcelain Ceramic Balls Introduction:


The High Alumina Support Media is equal to Denstone 99 Support Media. It is in chemical composition99+% alpha alumina and a maximum 0.2wt% SiO2. Because of its high alumina content and low silica (SiO2 ), it's a very excellent and ideal product for high temperature and steam applications, such as secondary reformers in ammonia processing, where leached silica will coat downstream equipment or foul the catalyst bed.


High Alumina Ceramic Balls has very excellent thermal properties, with its high density high-temperature resistance 1550℃, also it's a good choice for heat retention or deceleration media.


For its superior chemical resistance, it's suitable for applications in ole fin processes, such as ethylene dryers, where there's the polymerization problem.

Model:

 99% Pure Alumina Ceramic Ball

Color:

White

Shape:

Ball

Typical Technical Composition

Min. %

Max. %

Usual %

Al2O3

99

99.6

99.3

SiO2

/

0.2

0.18

Fe2O3

/

0.2

0.02

TiO2

/

0.55

0.02

CaO

/

0.1

0.02

MgO

/

0.1

0.05

Na2O

/

0.25

0.1

K2O

/

0.2

0.13

Physical properties

Index

Value

Value

Leachable Iron

≤ 0.01%


Apparent Porosity by Weight

≤ 7.0%


Moh's Hardness Scale

>8.0


Water Absorption

<4.0wt.%


Acid Resistance

>99.8%


Thermal Conductivity

0.7-0.8 w/m2 .k


Thermal Expansion @ 500℃

0.10%


Thermal Shock Stability, 1000 ℃

then water cooling

10 times


Max. Operating Temperature

1550°C

2822℉

Specific Density

3.4g /cm3

212 lb /ft3

Bulk Density (Packing Density)

2.1g /cm3

131 lb /ft3




Size /

Crush Strength

Nominal Size

(lbs)

(kg)

(N/pc)

mm

inch

min.

min.

min.

3

1/8

90

41

400

6

1/4

180

82

800

10

3/8

427

194

1900

13

1/2

1304

592

5800

16

5/8

1573

714

7000

19

3/4

2023

918

9000

25

1

2697

1224

12000

38

1.5

4046

1837

18000

50

2

4832

2194

21500

 68% 80% 92% 30mm 40mm 50mm 60mm Inert Porcelain Aluminum Oxide Al2O3 Alumina Ceramic Grinding Balls for Ball Mill

Alumina Ceramic Balls Typical Application:


a) It's a very excellent and ideal product for high temperature and steam applications, such as secondary reformers in ammonia processing, where leached silica will coat downstream equipment or foul the catalyst bed.

b) It's suitable for Inert Alumina Ceramic Ball applications in olefin processes, such as ethylene dryers, where there's the polymerization problem.

68% 80% 92% 30mm 40mm 50mm 60mm Inert Porcelain Aluminum Oxide Al2O3 Alumina Ceramic Grinding Balls for Ball Mill
