Molecular sieves 5A adsorbent dessiccant in PSA hydrogen purification with high crush strength

FEIZHOU 5A Molecular Sieve, has an effective pore opening of 5 angstroms(0.5nm).

It will adsorb molecules with a kinetic diameter of less than 5 angstrom and exclude those larger.

It has high select adsorption and fast adsorption speed.


PRODUCTS DESCRIPTION



Chemical Molecular Formula: 0.7CaO·0.3Na2O·Al2O3·2SiO2·4.5H2O  (SiO2 Al2O3 ≈2).

Technical Parameter:

Model

5A Molecular Sieve

Nominal pore diameter

5 angstroms

Shape

Sphere

Pellet

Diameter

1.7-2.5 (mm)

3.0-5.0 (mm)

1.6 (mm)

3.2 (mm)

8*12 (mesh)

4*8 (mesh)

1/16 (inch)

1/8 (inch)

Bulk density (g/ml)

≥0.66

≥0.66

≥0.64

≥0.64

Crushing strength (N/PC)

≥30.0

≥70.0

≥30.0

≥50.0

Size ratio up to grade (%)

≥96.0

≥96.0

≥96.0

≥94.0

Static H2O adsorption (%)

≥21.0

≥21.0

≥20.5

≥20.5

Static Hexane adsorption (%)

≥12.0

≥12.0

≥12.0

≥12.0

H2O content (%)

≤1.5

≤1.5

≤1.5

≤1.5

Wear ratio (%)

≤0.20

≤0.20

≤0.40

≤0.40

Molecular sieves 5A dessiccant  in PSA hydrogen purification with high crush strength

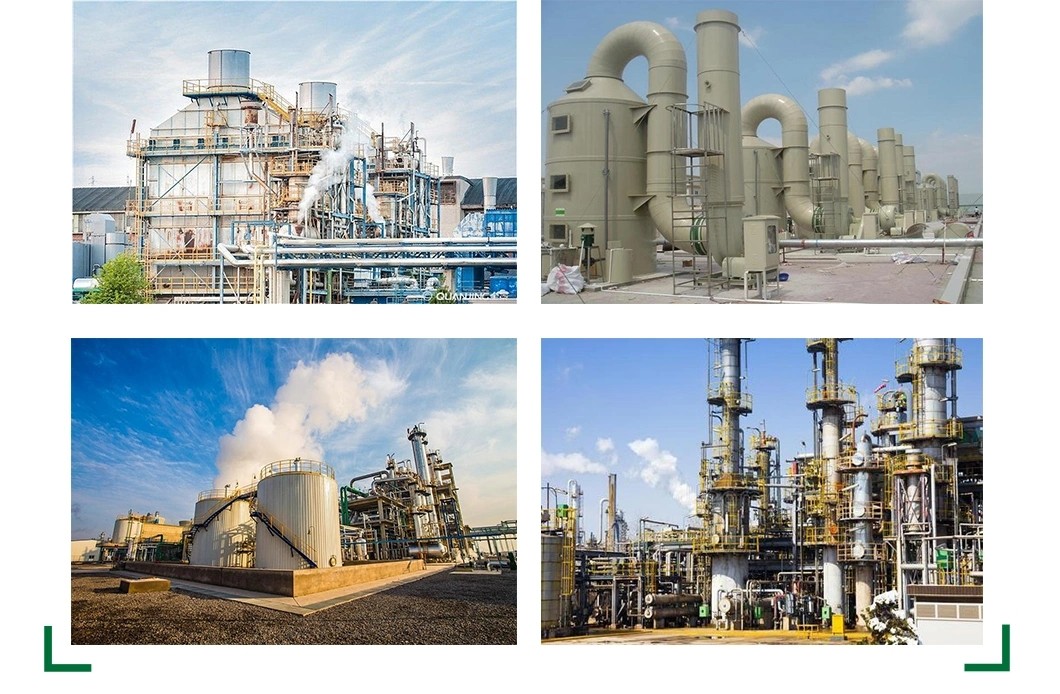

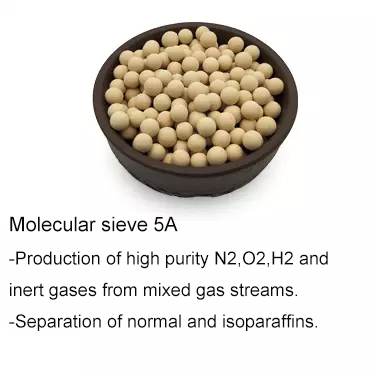

Typical Application:

a) The various sizes of O2H2, COand other gas PSA purification devices.

b) Separation of normal paraffin and isoparaffin.

c) The purification of air, dehydration and carbon dioxide removal.

d) The drying of natural gas, dehydration and desulphurization.



Warranty:

By National Standard GB/T 13550-2015.

Free consultation during the warranty period.

 Molecular sieves 5A dessiccant  in PSA hydrogen purification with high crush strength



**The above information is for customers’ reference only. Performance characteristics vary depending on specific application. please contact us by email at info@fznewmaterials.com if detailed application method for materials needed.
