Molecular Sieve
Home > Products > Molecular Sieve > FEIZHOU Molecular sieves 5A medical oxygen generator in PSA hydrogen purification

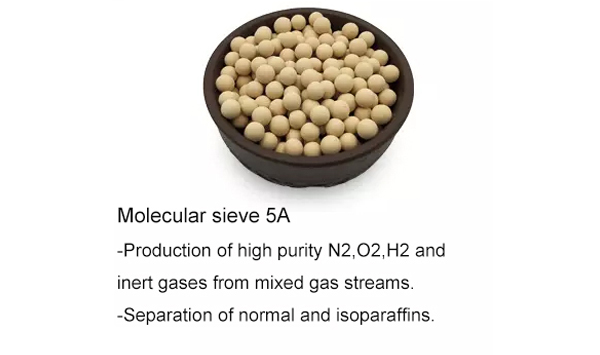

FEIZHOU Molecular sieves 5A medical oxygen generator in PSA hydrogen purification

FEIZHOU 5A Molecular Sieve, has an effective pore opening of 5 angstroms(0.5nm).

It will adsorb molecules with a kinetic diameter of less than 5 angstrom and exclude those larger.

It has high select adsorption and fast adsorption speed.


PRODUCTS DESCRIPTION

FEIZHOU Molecular sieves 5A medical oxygen generator in PSA hydrogen purification

FEIZHOU 5A Molecular Sieve, has an effective pore opening of 5 angstroms(0.5nm).

It will adsorb molecules with a kinetic diameter of less than 5 angstrom and exclude those larger.

It has high select adsorption and fast adsorption speed.



Chemical Molecular Formula: 0.7CaO·0.3Na2O·Al2O3·2SiO2·4.5H2O  (SiO2 Al2O3 ≈2).

Technical Parameter:

Model

5A Molecular Sieve

Nominal pore diameter

5 angstroms

Shape

Sphere

Pellet

Diameter

1.7-2.5 (mm)

3.0-5.0 (mm)

1.6 (mm)

3.2 (mm)

8*12 (mesh)

4*8 (mesh)

1/16 (inch)

1/8 (inch)

Bulk density (g/ml)

≥0.66

≥0.66

≥0.64

≥0.64

Crushing strength (N/PC)

≥30.0

≥70.0

≥30.0

≥50.0

Size ratio up to grade (%)

≥96.0

≥96.0

≥96.0

≥94.0

Static H2O adsorption (%)

≥21.0

≥21.0

≥20.5

≥20.5

Static Hexane adsorption (%)

≥12.0

≥12.0

≥12.0

≥12.0

H2O content (%)

≤1.5

≤1.5

≤1.5

≤1.5

Wear ratio (%)

≤0.20

≤0.20

≤0.40

≤0.40

 FEIZHOU Molecular sieves 5A medical oxygen generator in PSA hydrogen purification

Typical Application:

a) The various sizes of O2H2, COand other gas PSA purification devices.

b) Separation of normal paraffin and isoparaffin.

c) The purification of air, dehydration and carbon dioxide removal.

d) The drying of natural gas, dehydration and desulphurization.



Warranty:

By National Standard GB/T 13550-2015.

Free consultation during the warranty period.



"Note:This is normal specification, in case of a particular application, application, please contact us by email at info@fznewmaterials.com for technical information."
