Home > Products > Molecular Sieve > Hot sale Zeolite 3-10L Medical oxygen 95-98% Purity LiLSX Molecular Sieve 0.8-1.3mm Lithium Molecular Sieve

Hot sale Zeolite 3-10L Medical oxygen 95-98% Purity LiLSX Molecular Sieve 0.8-1.3mm Lithium Molecular Sieve

0.8-1.3mm lithium based high performance oxygen enrichment sieve bed mainly used in PSA and VPSA oxygen concentrator device. Lithium oxygen sieve bed has the characteristics of higher N2 adsorption capacity, high N2 with O2 selectivity and easy desorption etc. Its N2 adsorption capacity is 2-3 times larger than A type oxygen enrichment molecular sieve bed. At the same time, lithium oxygen molecualr sieve bed has good wear resistance and longer service life. It can significantly increases the economic benefits of oxygen production by lowering operating costs and energy consumption. Normally, JLOX-101 is designed for portable oxygen generator 1-5L/Min, lithium molsieve is designed for industrial oxygen plant, oxygen purity is up to 93%±3%.

PRODUCTS DESCRIPTION

FEIZHOU oxygen enrichment molecular sieve series are special used in PSA/VPSA system. They have good N2/O2 selectivity, good crush strength and low loss on attrition, which is cost-effective for concentrating oxygen from air. They are widely used in industrial/Medical oxygen concentrator in ozone production filed, Aquaculture field for fish farming,Waste water treatment field, medical oxygen market. etc. Their concentating purity up to 93%+-3%, having good reputation in market.



Technical Parameter:

Model

13X HP Molecular Sieve

Lithium Based Molecular Sieve

Diameter

0.4-0.8MM

1.6-2.5MM

0.4-0.8MM

1.3-1.7MM

Bulk density

≥0.62g/mL

≥0.62g/mL

≥0.63g/mL

≥0.63g/mL

Crushing strength

/

≥25N/piece


≥15N/piece

Static N2 Adsorption (1bar, 25°C)

≥8mL/g

≥8mL/g

 ≥22.5mL/g

 ≥22.5mL/g

N2/O2 Separation

(1bar, 25°C)

≥3

≥3

 ≥6.2

 ≥6.2

Attrition

≤0.3wt.%

≤0.3wt.%

 ≤1wt.%

≤1wt.%

Moisture Content

≤0.5wt.%

≤0.5wt.%

 ≤0.5wt.%

≤0.5wt.%

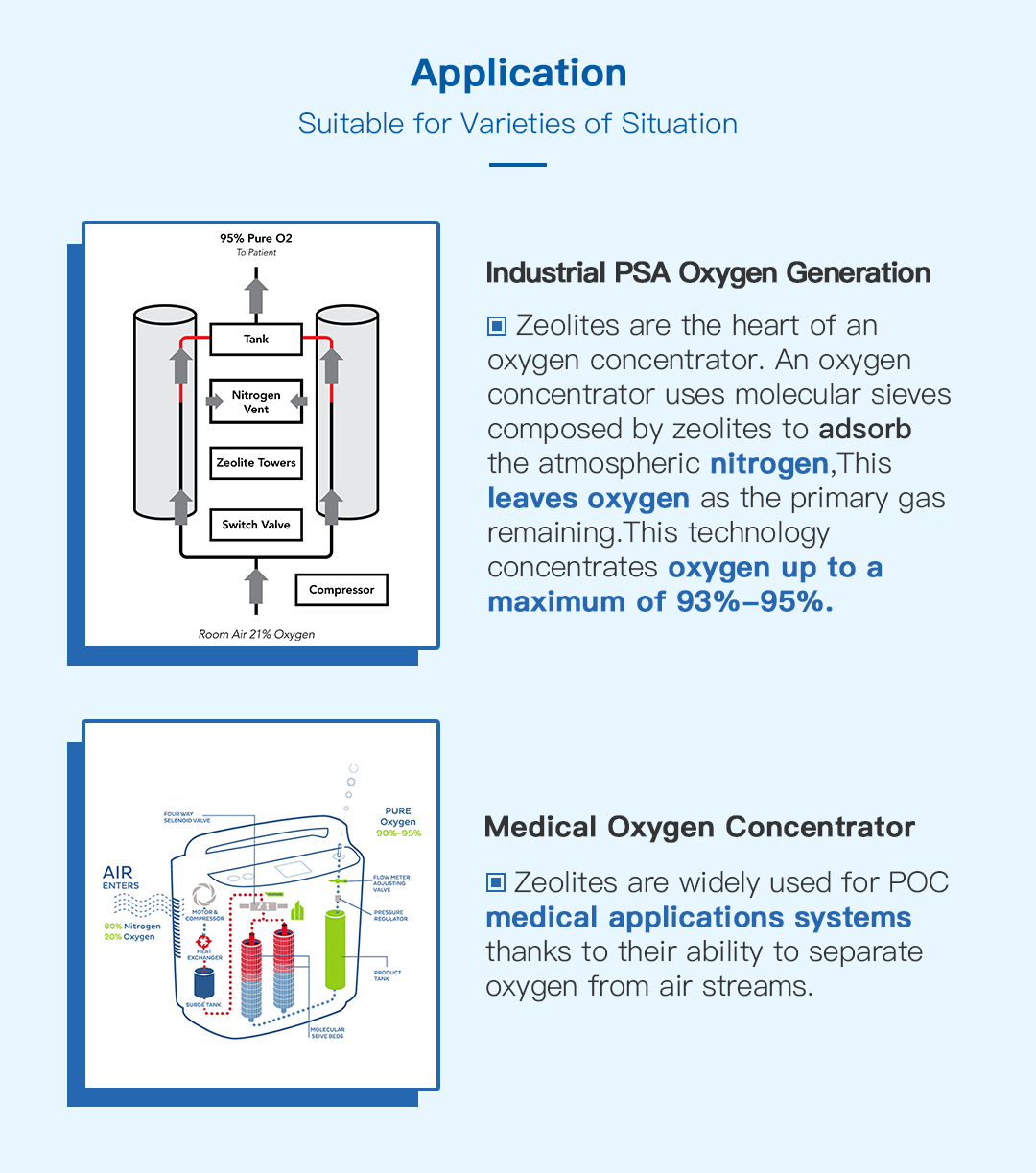

Application

Medical care oxygen generator, small, portable oxygen concentrators Capacity: 1L/min-10L/min

Industrial and Medical Oxygen Generator/Plant, hospital oxygen concentrators of PSA system Capacity: <300Nm3/hour

Medical care oxygen generator, small, portable oxygen concentrators Capacity: 1L/min-10L/min

Industrial and Medical Oxygen Generator/Plant, hospital oxygen concentrators of PSA system Capacity: 300-10000Nm3/hour

Purity

93%±3%

93%±3%

 93%±3%

93%±3%



Our Services


We hope we can bring you high quality service.

Our whole staff would keep hard and innovative in work to provide qualified product and good service.


Hot sale Zeolite 3-10L Medical oxygen 95-98% Purity LiLSX Molecular Sieve 0.8-1.3mm Lithium Molecular Sieve

Hand & Storage Recommendation


Molecular Sieve should be handled to avoid generation of dusty conditions at the workplace. Storage in a dry warehouse is recommended. Open packages should be resealed to prevent contamination and adsorption of water or other gases and vapors. The material in bag-in-box should be used within 12 months,while bag-in-steel drum should be used within 24 months.


Package of  lithium & Sodium molecular sieve:

25kg & 125kg / steel drum. palletized with plastic film for lithium molecular sieve



Packaging & Shipping


1. Packaging Details:25KG net woven bag with inner plastic bag. 50KG net in Cardboard Drum. and other   packing.You can also choose according to your requirements

2.Delivery Detail:We always provide sea transportation and air transportation.We can also  provide according   to your requirements.

3.Delivery time:Because of the nature of our products,we always delivery in 21 days.

Hot sale Zeolite 3-10L Medical oxygen 95-98% Purity LiLSX Molecular Sieve 0.8-1.3mm Lithium Molecular Sieve

Regeneration

To achieve good operating performance and long life as much as possible, after a certain period of time use must be regenerated .After correct molecular sieve regeneration , make it get the low attenuation of mechanical properties and adsorption


There are two basic approaches:


Temperature variation .

Generally used in the preheating gas heating, purge molecular sieve to about 200℃, and  stripping down the adsorbate .


Variable pressure .

Usually used in the gas phase adsorption process.Maintain a constant temperature adsorbent and by reducing pressure and backing purge inert gas , to remove the adsorbate.



"Note:This is normal specification, in case of a particular application, application, please contact us by email at info@fznewmaterials.com for technical information."
