Molecular Sieve
Home > Products > Molecular Sieve > High quality 5A molecular sieve

High quality 5A molecular sieve

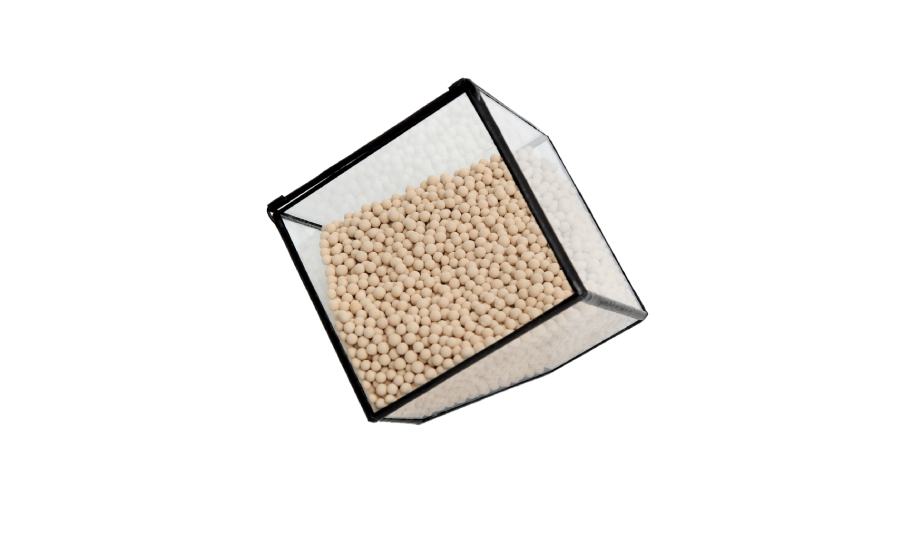

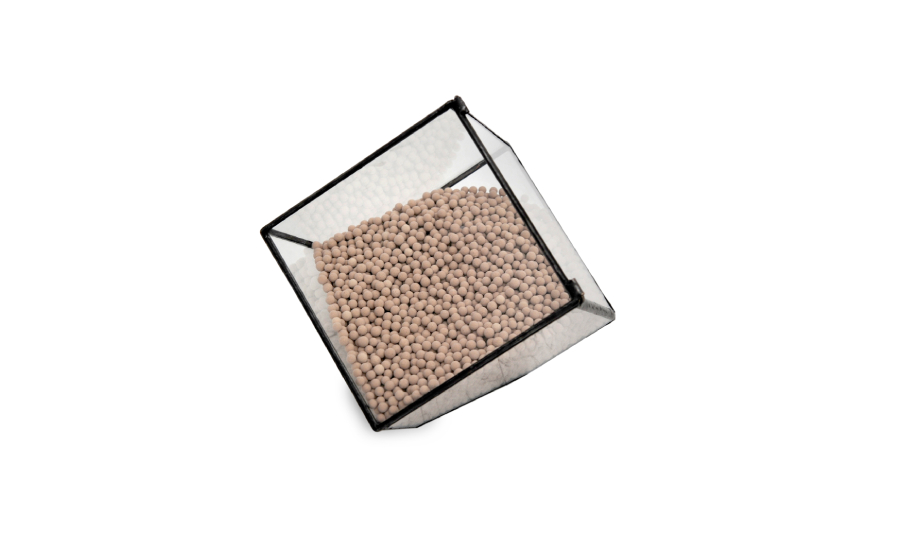

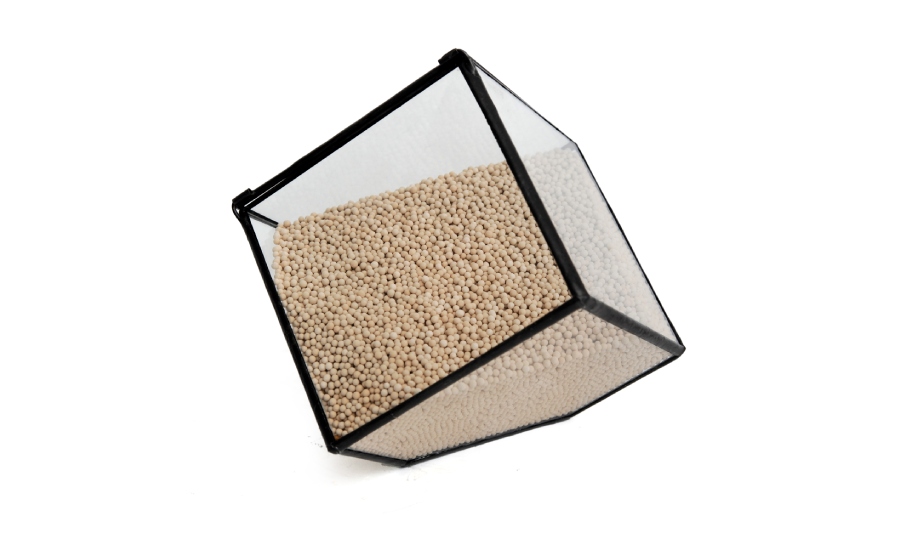

Molecular Sieve 5A is made from zeolite powder 5A (>70%) and binder. Molecular sieve 5A is usually used for separation of the normal and isomerous alkane, co-adsorption of carbon dioxide and moisture, along with pressure swing adsorption (PSA) for gases. Molecular Sieve 5A have the shape of beads, pallets.




PRODUCTS DESCRIPTION



More Detailed:

Synonym: Zeolite 5A, Molsive 5A, 5A molecular sieve, 5 angstrom sieve

Typical Chemical Formula: Ca4,5 [(Al02)12(SiO2)12].nH2O

CAS NO.: 1318-02-1

Silica-alumina ratio: SiO2/ Al2O3≈2



Item

Unit

Technical data

Shape


Pellet

Sphere

Diameter

mm

1.5-1.7

3.0-.3.3

1.7-2.5

3.0-5.0

Size ratio up to grade

%

≥98

≥98

≥96

≥96

Bulk density

g/ml

≥0.68

≥0.68

≥0.68

≥0.68

Wear ratio

%

≤0.20

≤0.4

≤0.20

≤0.20

Crushing strength

N

≥30/cm

≥45/cm

≥30/piece

≥60/piece

Static water adsorption

%

≥21.5

≥21.5

≥21.5


Water content,as shipped

%

≤1.5

≤1.5

≤1.5

≤1.5


Application:

1. Molecular sieve 5A is an excellent adsorbent to remove water, CO2, H2S from sour natural gas streams, while decreasing COS formation

2. Molecular sieve 5A can adsorb light mercaptans

2. Molecular sieve 5A also use for the separation of normal- and iso-paraffins

3. Molecular sieve 5A can use for high purity N2, O2, H2 and inert gases from mixed gas streams



Stroage:

Keep 5A Molecular Sieve in an air tight container until ready for use to avoid unintended moisture adsorption.



Regeneration&Activation:

Molecular sieve 5A can be regenerated or activated either thermal regeneration method(Thermal Swing Adsorption, TSA); To remove moisture from a 5A molecular sieve, a temperature of 200-230℃ (390-570℃)is required. Molecular sieve 5A can also be regnerated or activated by lowering the pressure in the case of pressure swing processes (PSA). A properly regenerated or activated molecular sieve can give moisture dew points below -100℃. The outlet concentrations on a pressure swing process will depend on the gas present, and on the conditions of the process.


Packing

5A molecular sieve

150 kg/drum, 25kg/carton, supersack




For questions on products application, orders, processing and shipping, please contact 0550-2263726 or by email at info@fznewmaterials.com
