China High Purity Oxygen Concentration Zeolite 95-98% Purity Zeolite 3-10L Medical oxygen LiLSX Molecular Sieve Lithium Molecular Sieve

FEIZHOU oxygen enrichment molecular sieve series are special used in PSA/VPSA system. They have good N2/O2 selectivity, good crush strength and low loss on attrition, which is cost-effective for concentrating oxygen from air. They are widely used in industrial/Medical oxygen concentrator in ozone production filed, Aquaculture field for fish farming,Waste water treatment field, medical oxygen market. etc. Their concentating purity up to 93%+-3%, having good reputation in market.


PRODUCTS DESCRIPTION

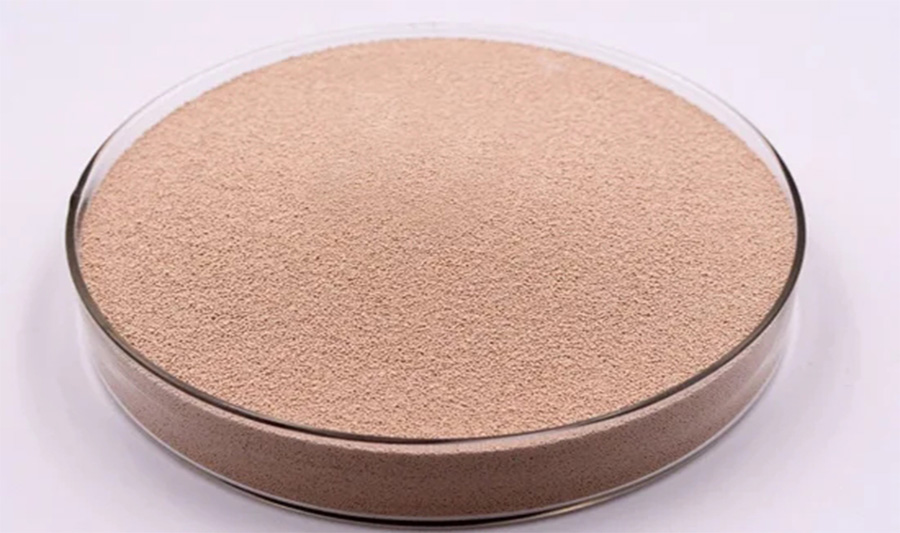

Lithium molecular sieve Description

Lithium molecular sieve is a synthetic zeolite of lithium-type crystal structure, large Nitrogen adsorption capacity, high

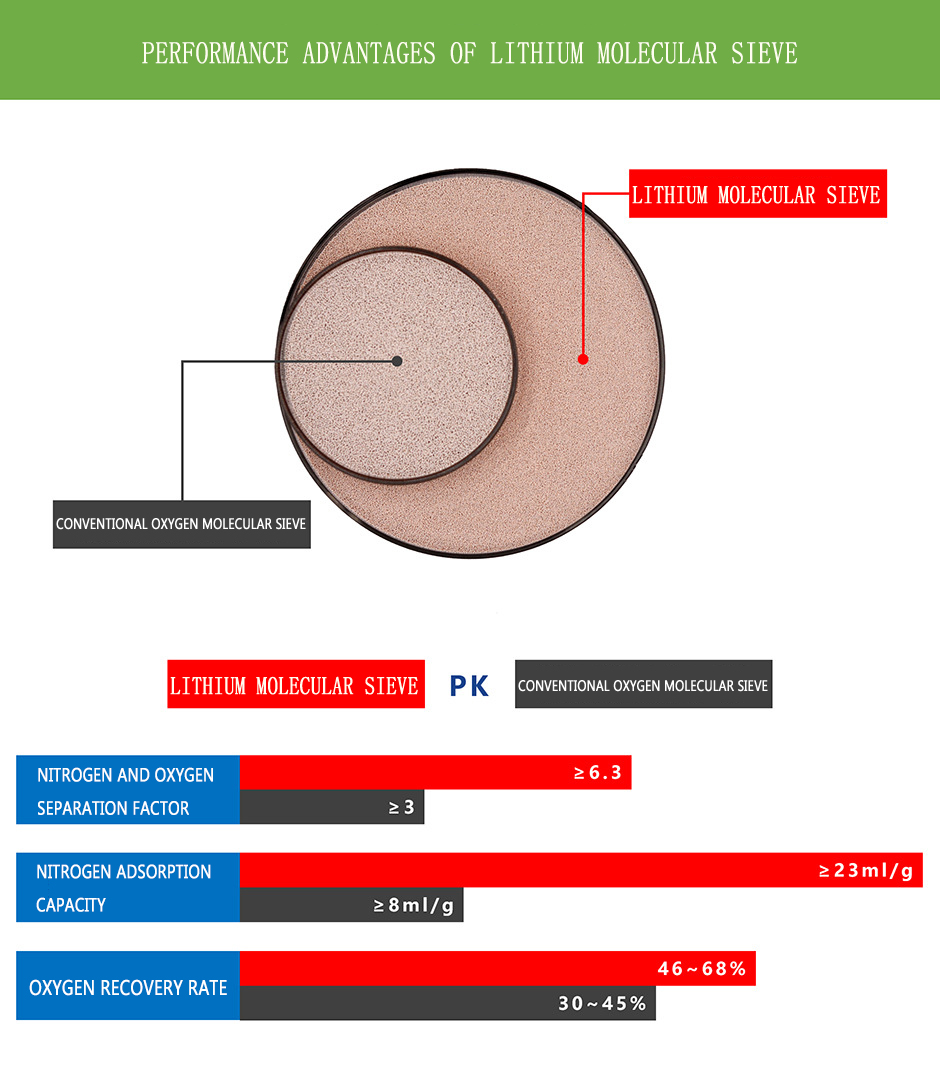

efficiency of oxygen/nitrogen separation. Below chart indicates lithium based molecular sieve((The temperature is 25℃)) It shows high N2/O2 separation under a very low pressure, which lowers the consumption of producing oxygen.The advantage of on the equilibrium adsorption capacity, It applies to various VPSA device for producing oxygen.

China High Purity Oxygen Concentration Zeolite  95-98% Purity Zeolite 3-10L Medical oxygen LiLSX Molecular Sieve Lithium Molecular Sieve

Technical Parameter:

Model

13X HP Molecular Sieve

Lithium Based Molecular Sieve

Diameter

0.4-0.8MM

1.6-2.5MM

0.4-0.8MM

1.3-1.7MM

Bulk density

≥0.62g/mL

≥0.62g/mL

≥0.63g/mL

≥0.63g/mL

Crushing strength

/

≥25N/piece


≥15N/piece

Static N2 Adsorption (1bar, 25°C)

≥8mL/g

≥8mL/g

 ≥22.5mL/g

 ≥22.5mL/g

N2/O2 Separation

(1bar, 25°C)

≥3

≥3

 ≥6.2

 ≥6.2

Attrition

≤0.3wt.%

≤0.3wt.%

 ≤1wt.%

≤1wt.%

Moisture Content

≤0.5wt.%

≤0.5wt.%

 ≤0.5wt.%

≤0.5wt.%

Application

Medical care oxygen generator, small, portable oxygen concentrators Capacity: 1L/min-10L/min

Industrial and Medical Oxygen Generator/Plant, hospital oxygen concentrators of PSA system Capacity: <300Nm3/hour

Medical care oxygen generator, small, portable oxygen concentrators Capacity: 1L/min-10L/min

Industrial and Medical Oxygen Generator/Plant, hospital oxygen concentrators of PSA system Capacity: 300-10000Nm3/hour

Purity

93%±3%

93%±3%

 93%±3%

93%±3%

China High Purity Oxygen Concentration Zeolite  95-98% Purity Zeolite 3-10L Medical oxygen LiLSX Molecular Sieve Lithium Molecular Sieve

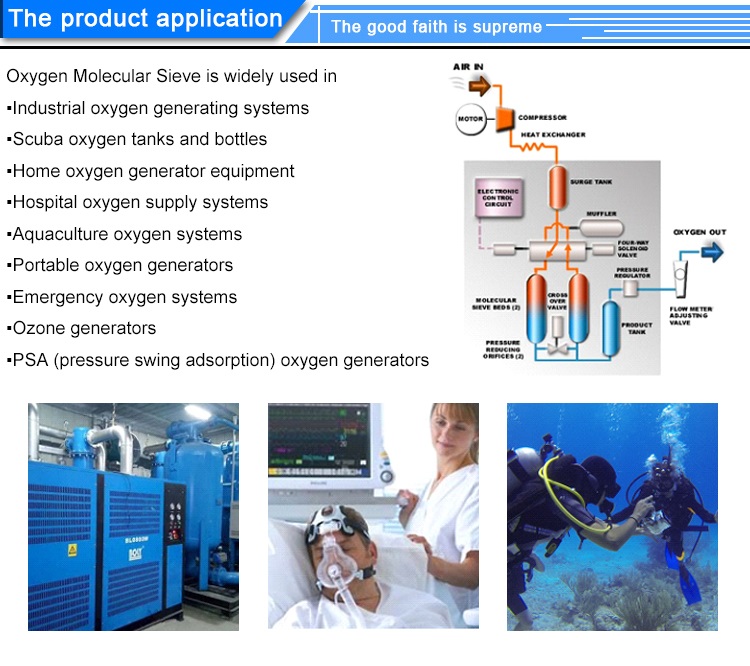

Application:


1. Lithium Sieve beds used for industrial oxygen concentrator in Waste water treatment field


2. Lithium Sieve beds used for oxygen concentrator in Aquaculture field for fish farming


3. Lithium Sieve bed for oxygen concentrator 1-5L/Min in medical oxygen market


4. Oxygen concentrator sieve bed material for ozone production filed


China High Purity Oxygen Concentration Zeolite  95-98% Purity Zeolite 3-10L Medical oxygen LiLSX Molecular Sieve Lithium Molecular Sieve

Stroage:


This oxygen concentrator sieve bed material is packed in aluminum bags and sealed in 25 kg air-tight drums. Lithium molecular sieve is very sensitive to moisture, please do not open before using. Storage temperature range: -10 ~ 45℃. Avoid direct sunlight!

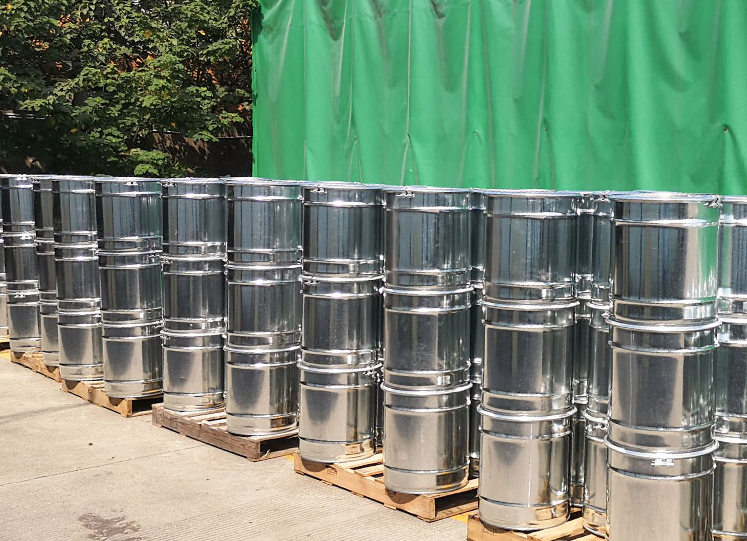

Packing:


25kg/drum with inner aluminum foil bag, 125 kg/drum with inner aluminum foil bag

China High Purity Oxygen Concentration Zeolite  95-98% Purity Zeolite 3-10L Medical oxygen LiLSX Molecular Sieve Lithium Molecular Sieve

"Note:This is normal specification, in case of a particular application, please contact us by email at info@fznewmaterials.com for technical information."
