Molecular Sieve
Home > Products > Molecular Sieve > 3.0-5.0mm Molecular Sieve 13X Zeolite Adsorption Desiccant for Air Separation 13X Molecular Sieve for CO2 and H2s Removal for Dehydration and Purification of Gases and Liquids

3.0-5.0mm Molecular Sieve 13X Zeolite Adsorption Desiccant for Air Separation 13X Molecular Sieve for CO2 and H2s Removal for Dehydration and Purification of Gases and Liquids

Molecular Sieve 13X: 13x Molecular Sieve is a special product which is produced to meet the special requirements of air separation industry.It further enhances the adsorption capacity for carbon dioxide and water,and also avoids tower frozen during air separation process.It also can be used for oxygen-making.


PRODUCTS DESCRIPTION

Product description:



Molecular Sieve 13X is made from zeolite powder 13X (>70%) and binder. Molecular sieve 13X is can adsorb aromatics and branched-chain hydrocarbons. Molecular sieve 13X is commonly used in removal of mercaptans, removal of CO2 in cryogenic air separation, etc.



Model

13X Molecular Sieve

Nominal pore diameter

10 angstroms

Shape

Sphere

Pellet

Bulk density (g/ml)

≥0.66

≥0.66

≥0.64

≥0.64

Crushing strength (N/PC)

≥25.0

≥80.0

≥25.0

≥45.0

Size ratio up to grade (%)

≥98.0

≥98.0

≥96.0

≥96.0

Static H2O adsorption (%)

≥25

≥25

≥25

≥25

H2O content (%)

≤1.5

≤1.5

≤1.5

≤1.5

Wear ratio (%)

≤0.20

≤0.20

≤0.20

≤0.20


More Details:

Synonym: Zeolite 13X, Molsive 13X, 13X molecular sieve, 13X-APG

Typical Chemical Formula: Na86[(AlO2)86(SiO2)106].nH2O

CAS NO.: 1318-02-1

Silica-alumina ratio: SiO2/ Al2O3≈2.4

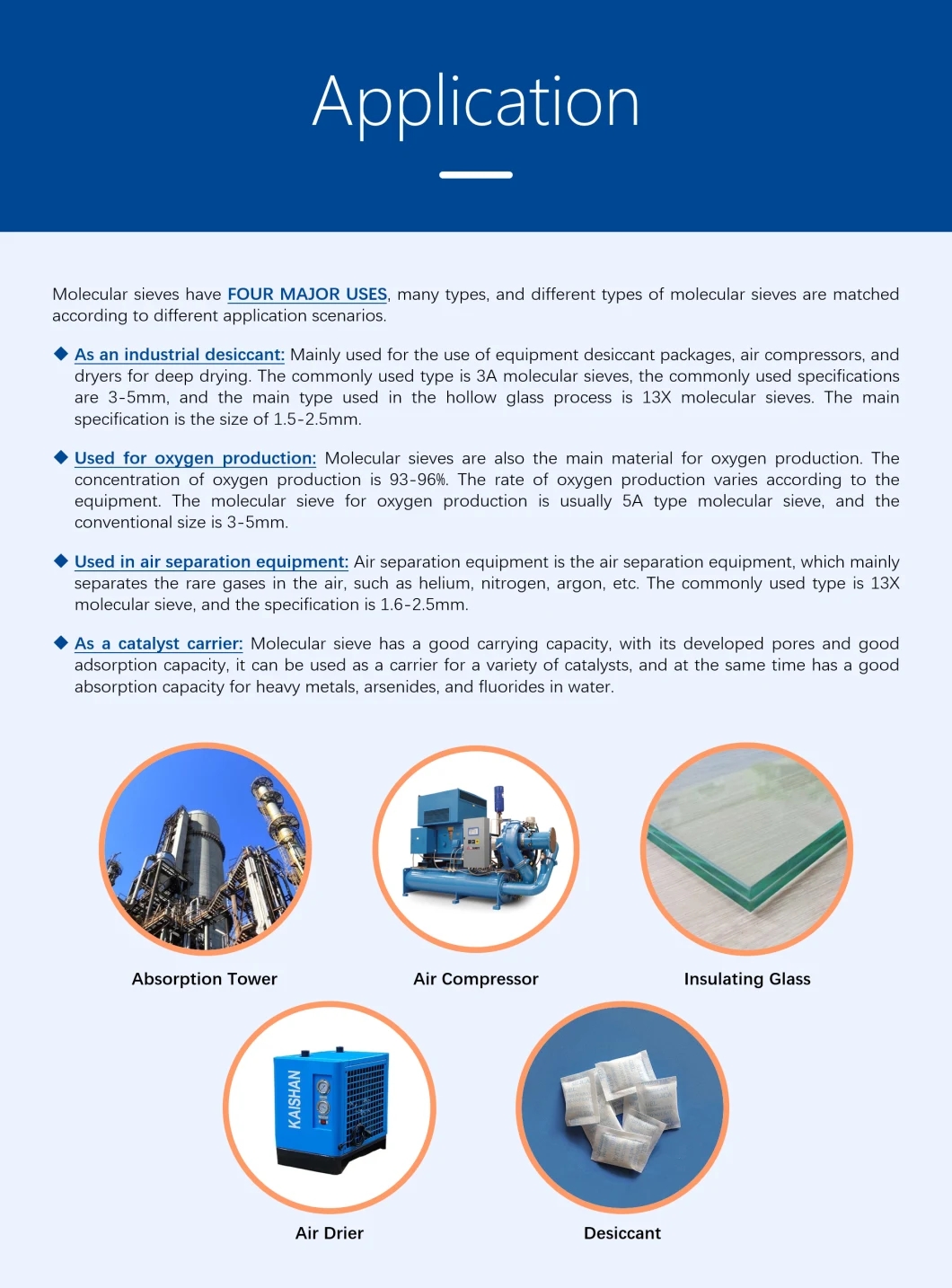

Application:

1. Molecular sieve 13X is used in removal of CO2 and moisture from air (air pre-purification) and other gases

2. Molecular sieve 13X is used in separation of enriched oxygen from air

3. Molecular sieve 13X is used in removal of mercaptans and hydrpogen sulphide from hydrocarbon liquid streams such as LPG, butane, propane etc

4. Molecular sieve 13X is used in removal of n-chained compositions from aromatics

3.0-5.0mm Molecular Sieve 13X Zeolite Adsorption Desiccant for Air Separation 13X Molecular Sieve for CO2 and H2s Removal for Dehydration and Purification of Gases and LiquidsStorage:

Keep 13X Molecular Sieve in an air tight container until ready for use to avoid unintended moisture adsorption.



Regeneration&Activation:

Molecular sieve 13X can be regenerated either thermal regeneration method(Thermal Swing Adsorption, TSA); To remove moisture from a 13X molecular sieve, a temperature of 200-230℃ (390-570°F) is required. Molecular sieve 13X can also be regnerated by lowering the pressure in the case of pressure swing processes (PSA). A properly regenerated molecular sieve can give moisture dew points below -100℃. The outlet concentrations on a pressure swing process will depend on the gas present, and on the conditions of the process.



Packing

 3.0-5.0mm Molecular Sieve 13X Zeolite Adsorption Desiccant for Air Separation 13X Molecular Sieve for CO2 and H2s Removal for Dehydration and Purification of Gases and Liquids

"Note:This is normal specification, in case of a particular application, please contact us by email at info@fznewmaterials.com for technical information."
