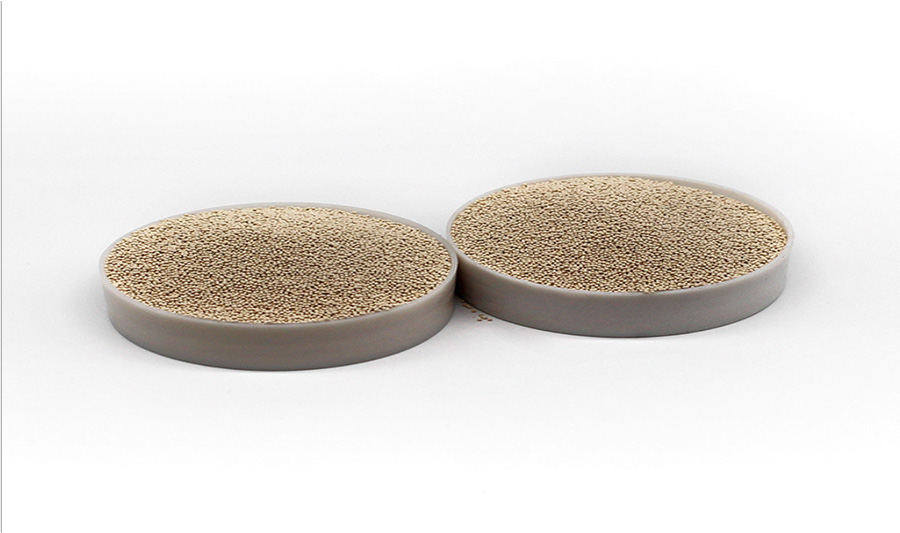

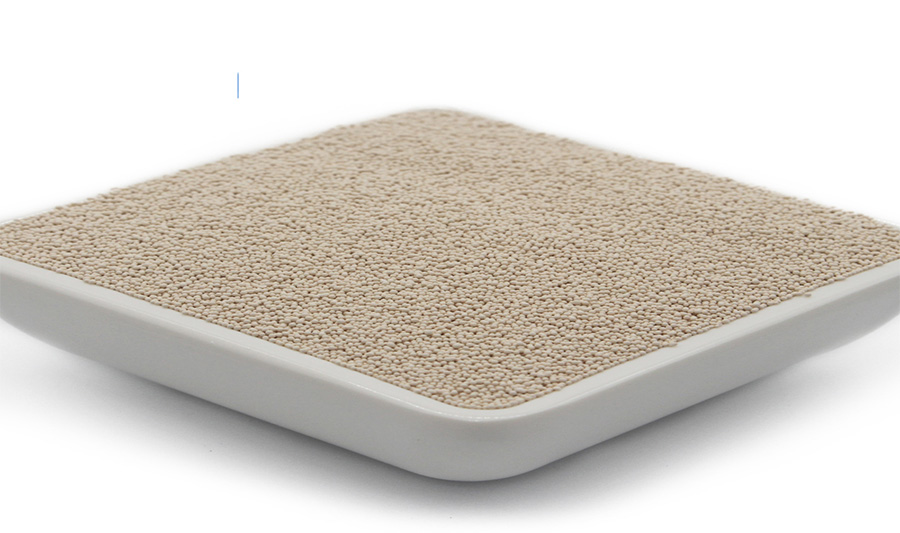

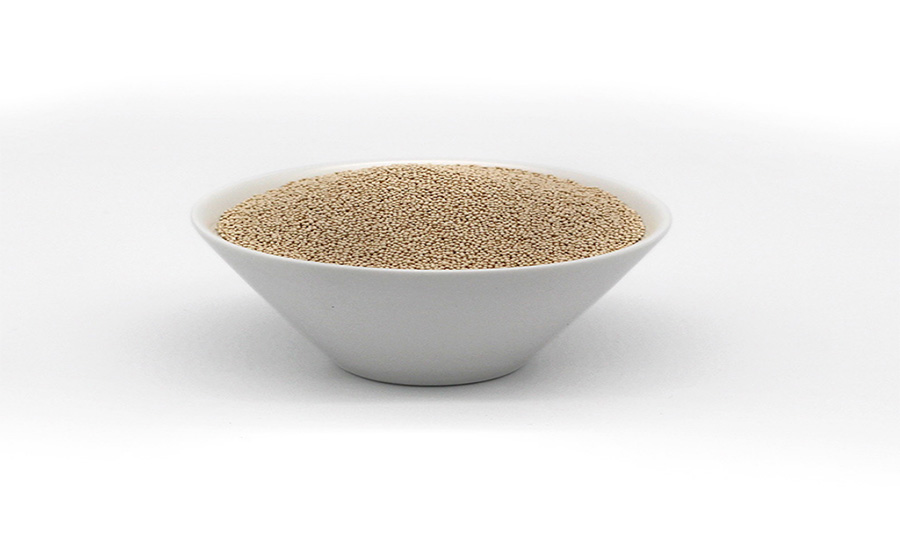

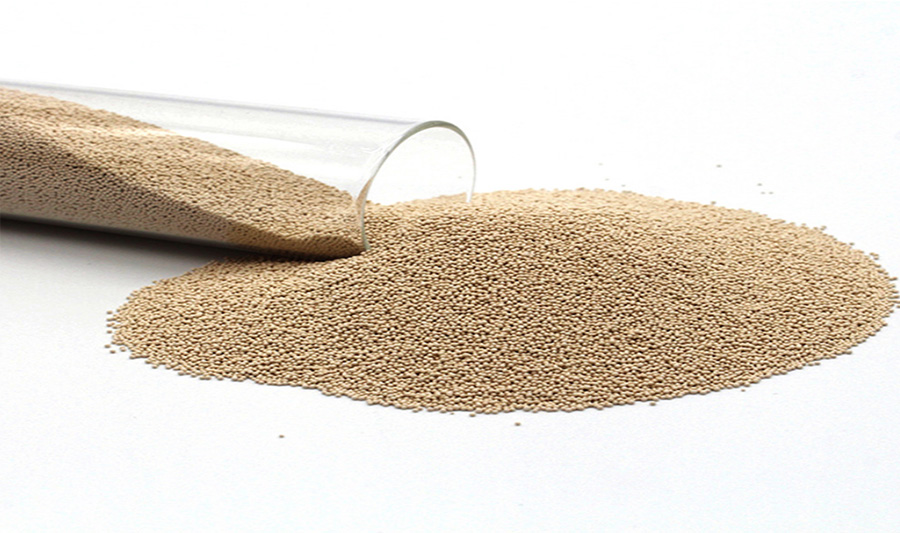

0.4-0.8mm Medical Oxygen Concentrator Molecular Sieve Classification Chemical Auxiliary Agent Adsorbent 1318-02-1

Item No.	UNIT
Product name	Type	Standard level
Diameter	20-50mesh	(0.4-0.8mm)
N2 Absorption Capacity	(ml/g)	≥22.00
N2/O2 Selectivity		≥6.2
Bulk Density	(g/ml)	0.63±0.03

Inquire Now Next Product

PRODUCTS DESCRIPTION

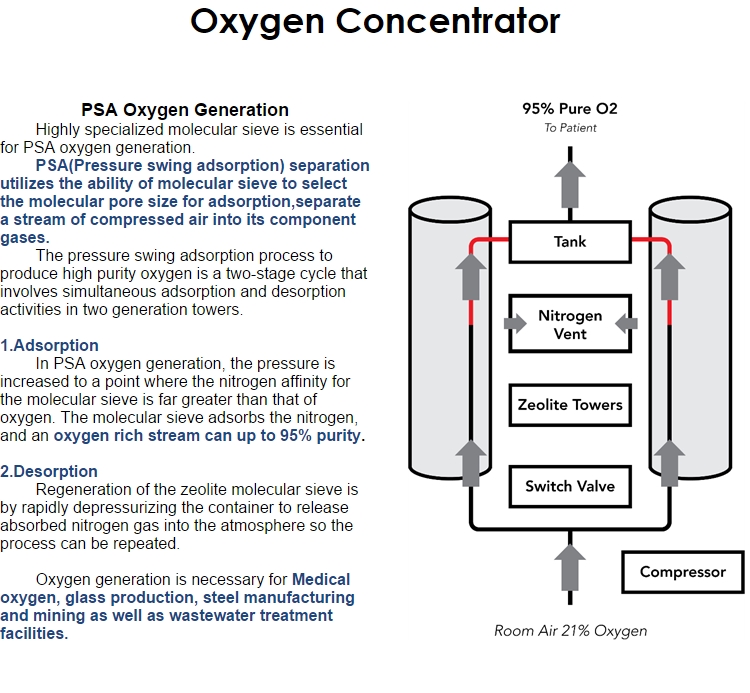

FEIZHOU oxygen enrichment molecular sieve series are special used in PSA/VPSA system. They have good N2/O2 selectivity, good crush strength and low loss on attrition, which is cost-effective for concentrating oxygen from air. They are widely used in industrial/Medical oxygen concentrator in ozone production filed, Aquaculture field for fish farming,Waste water treatment field, medical oxygen market. etc. Their concentating purity up to 93%+-3%, having good reputation in market.

Technical Parameter:

Model	13X HP Molecular Sieve		Lithium Based Molecular Sieve
Diameter	0.4-0.8MM	1.6-2.5MM	0.4-0.8MM	1.3-1.7MM
Bulk density	≥0.62g/mL	≥0.62g/mL	≥0.63g/mL	≥0.63g/mL
Crushing strength	/	≥25N/piece		≥15N/piece
Static N2 Adsorption (1bar, 25°C)	≥8mL/g	≥8mL/g	≥22.5mL/g	≥22.5mL/g
N2/O2 Separation (1bar, 25°C)	≥3	≥3	≥6.2	≥6.2
Attrition	≤0.3wt.%	≤0.3wt.%	≤1wt.%	≤1wt.%
Moisture Content	≤0.5wt.%	≤0.5wt.%	≤0.5wt.%	≤0.5wt.%
Application	Medical care oxygen generator, small, portable oxygen concentrators Capacity: 1L/min-10L/min	Industrial and Medical Oxygen Generator/Plant, hospital oxygen concentrators of PSA system Capacity: <300Nm3/hour	Medical care oxygen generator, small, portable oxygen concentrators Capacity: 1L/min-10L/min	Industrial and Medical Oxygen Generator/Plant, hospital oxygen concentrators of PSA system Capacity: 300-10000Nm3/hour
Purity	93%±3%	93%±3%	93%±3%	93%±3%

0.4-0.8mm Medical Oxygen Concentrator Molecular Sieve Classification Chemical Auxiliary Agent Adsorbent 1318-02-1

Lithium ZeoliteApplication:

1. Lithium Sieve beds used for industrial oxygen concentrator in Waste water treatment field

2. Lithium Sieve beds used for oxygen concentrator in Aquaculture field for fish farming

3. Lithium Sieve bed for oxygen concentrator 1-5L/Min in medical oxygen market

4. Oxygen concentrator sieve bed material for ozone production filed

Lithium Molecular Sieve Stroage:

This oxygen concentrator sieve bed material is packed in aluminum bags and sealed in 25 kg air-tight drums. Lithium molecular sieve is very sensitive to moisture, please do not open before using. Storage temperature range: -10 ~ 45℃. Avoid direct sunlight!

0.4-0.8mm Medical Oxygen Concentrator Molecular Sieve Classification Chemical Auxiliary Agent Adsorbent 1318-02-1

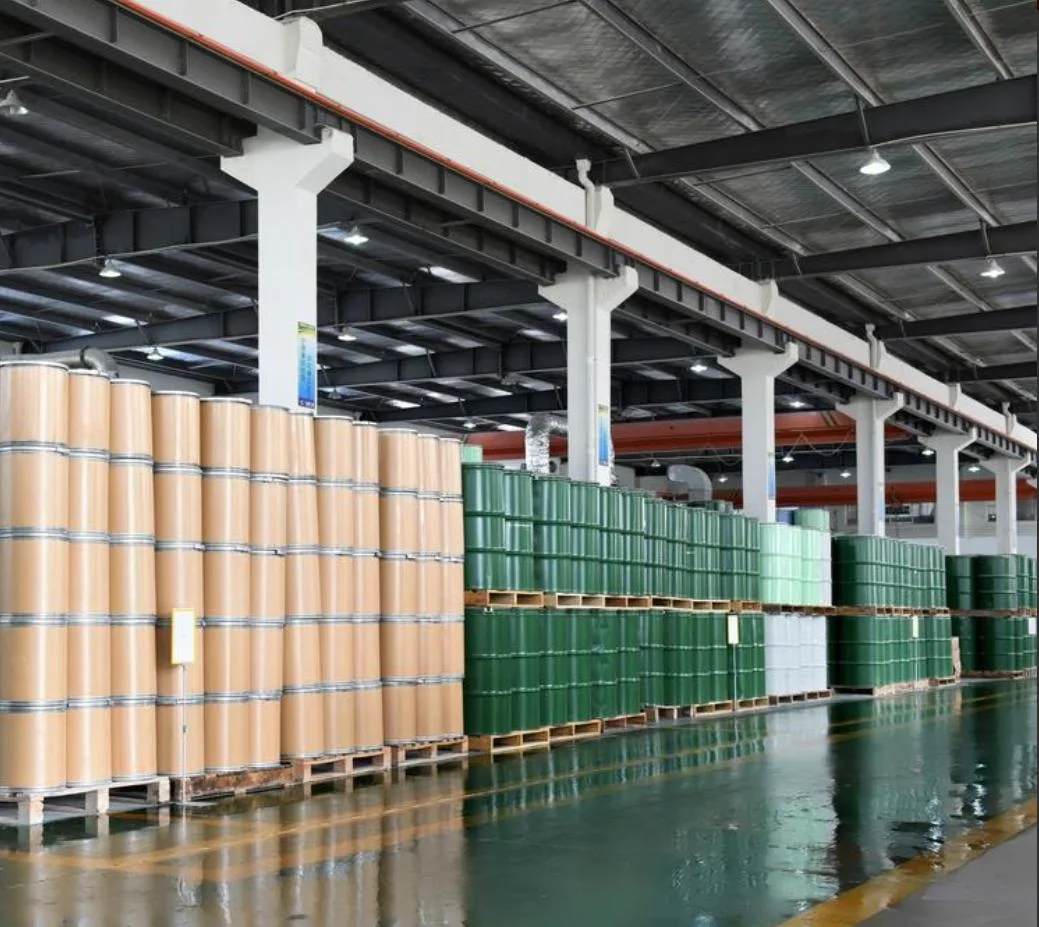

Packing:

25kg/drum with inner aluminum foil bag, 125 kg/drum with inner aluminum foil bag
