Higher Contamination Resistance Zeolite Electrolyte Molecular Sieve Dehydration Manufacturers Remove Moisture From Llithium-Ion Battery Electrolyte

Diameter		(3-5mm)
Bulk Density	(g/ml)	0.65±0.03
Equilibrium Water Capacity	%	≤21
Crushing Strength	(N/pc)	≥80
LOI	(%)	≤1.0
Static methanol adsorption	(%)	≥15

Inquire Now Next Product

PRODUCTS DESCRIPTION

Product Introduction:

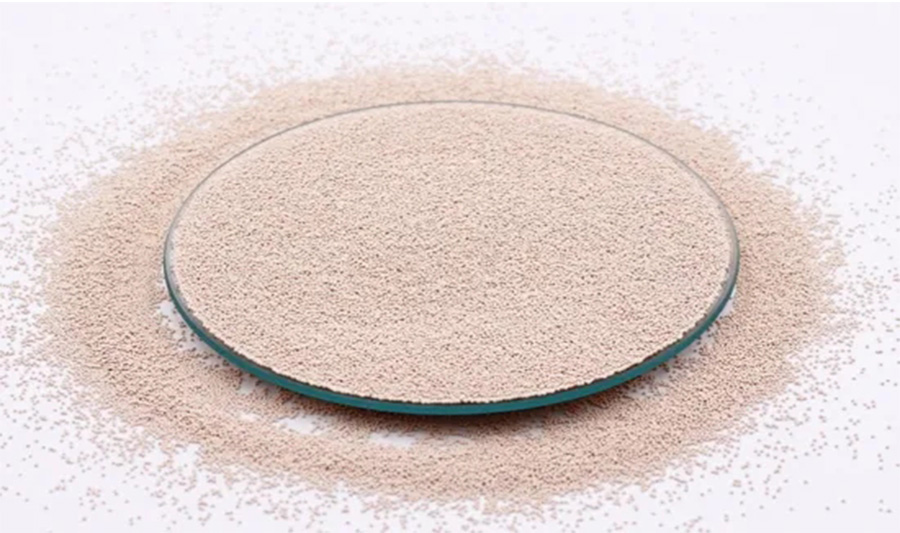

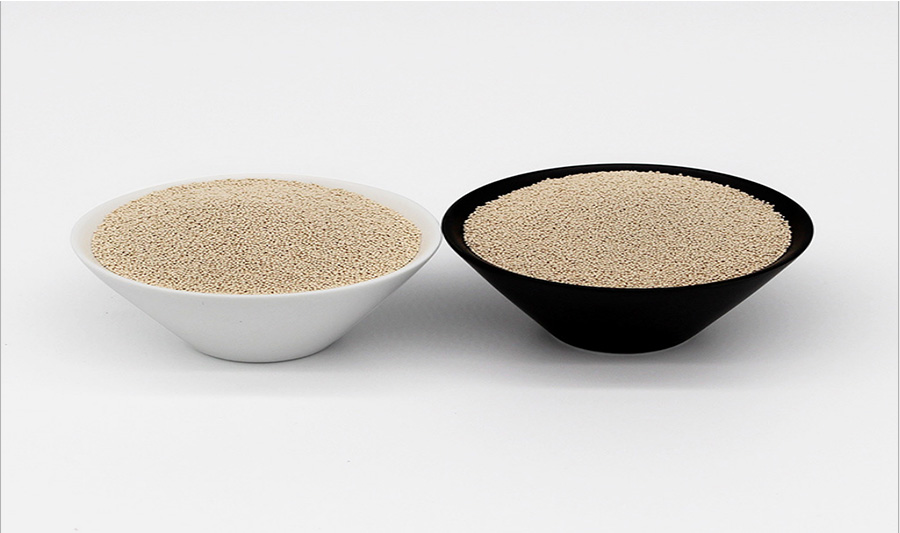

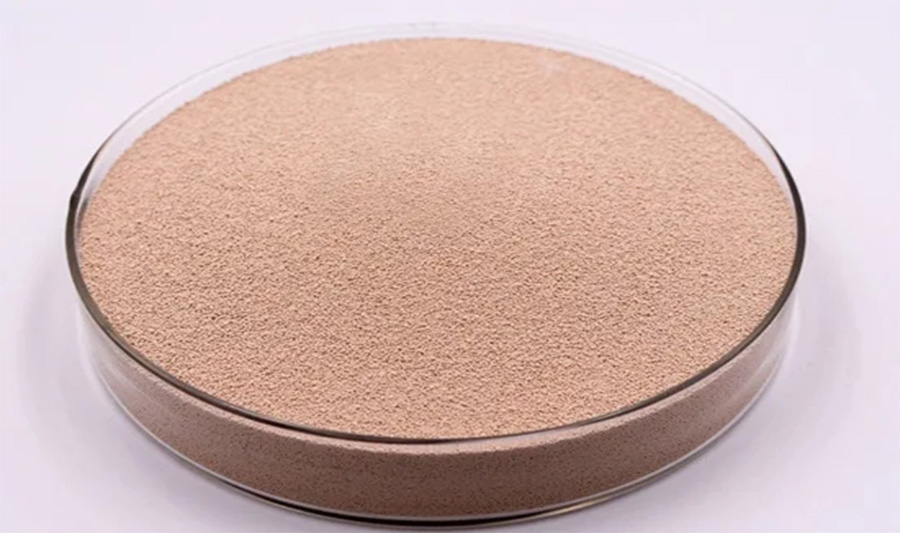

4A Molecular Sieve For Electrolyte Molecular Sieve, is an alkali alumina silicate. It is the sodium form of the type A crystal structure. It has an effective pore opening of about 4 angstroms(0.4nm). It will adsorb most molecules with a kinetic diameter of less than 4 angstroms and exclude those larger.

FEIZHOU 4A Molecular Sieve, the pore size distribution is very uniform, has very good adsorption properties and good oil adhesion, and has a certain buffer alkalinity effect. It is non-toxic, safe and reliable to human body, and has no adverse effects on ecosystem.

Chemical Molecular Formula: Na₂O·Al₂O₃·2SiO₂·4.5H₂O. (SiO₂ : Al₂O₃ ≈2).

Contamination Resistance Zeolite

Technical Parameter:

Model	4A Molecular Sieve
Color	Beige
Nominal pore diameter	4 angstroms

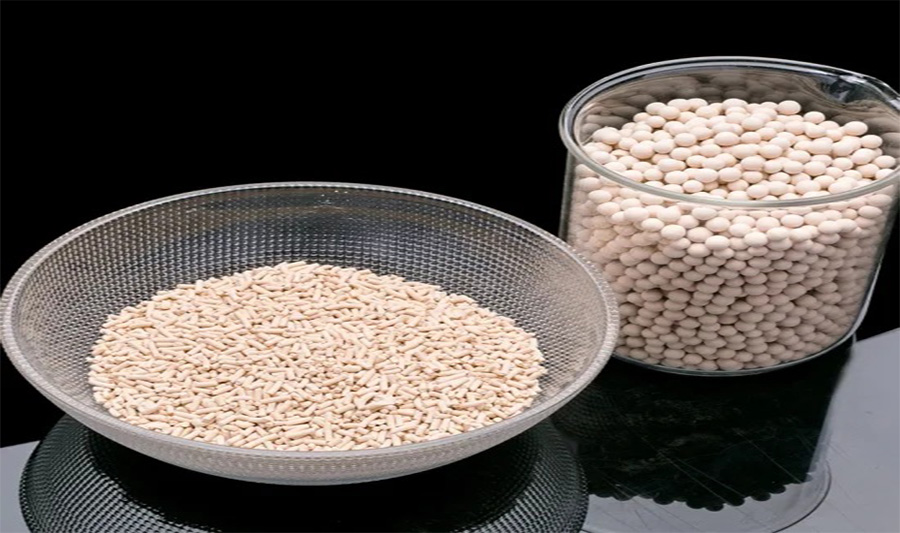

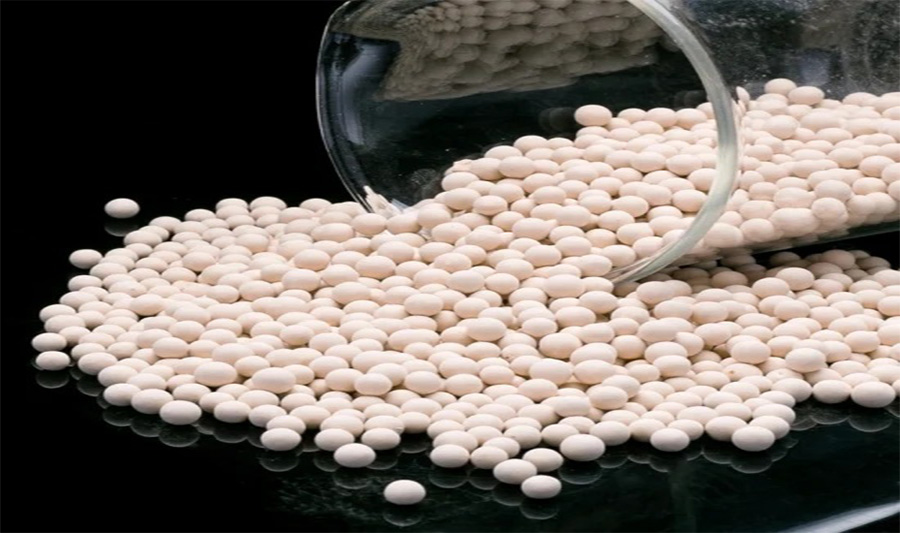

Shape	Sphere		Pellet

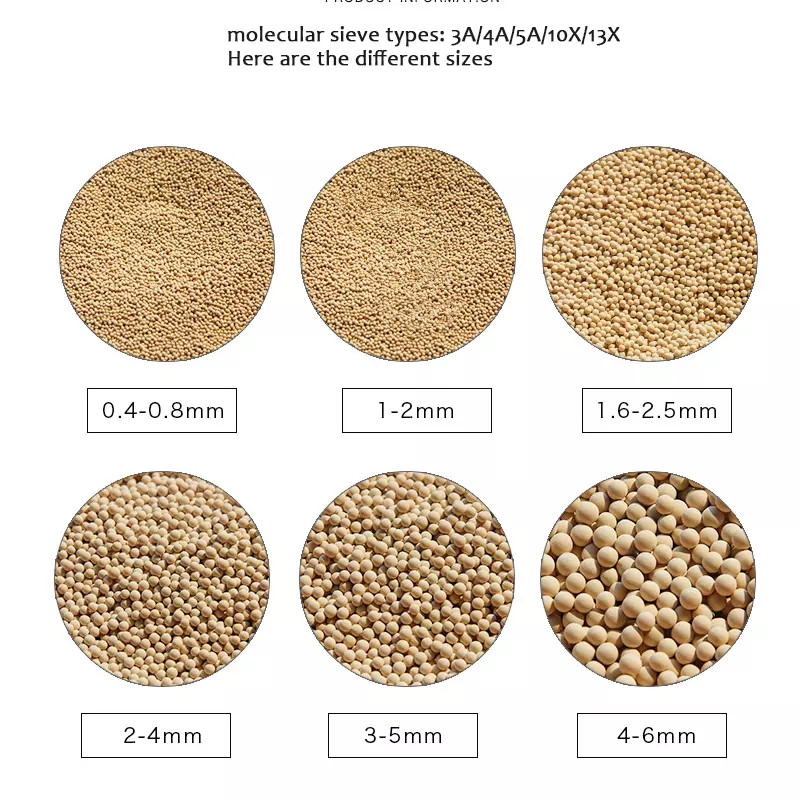

Diameter	1.7-2.5 (mm)	3.0-5.0 (mm)	1.6 (mm)	3.2 (mm)
Diameter	8*12 (mesh)	4*8 (mesh)	1/16 (inch)	1/8 (inch)
Bulk density (g/ml)	≥0.68	≥0.68	≥0.66	≥0.66
Crushing strength (N/PC)	≥35.0	≥80.0	≥30.0	≥70.0
Size ratio up to grade (%)	≥98.0	≥98.0	≥96.0	≥96.0
Static H₂O adsorption (%)	≥21.5	≥21.5	≥21.5	≥21.5
Static CH₃OH adsorption (%)	≥15.0	≥15.0	≥15.0	≥15.0
H₂O content (%)	≤1.5	≤1.5	≤1.5	≤1.5
Wear ratio (%)	≤0.20	≤0.20	≤0.40	≤0.40

Typical Application Of Molecular Sieve Moisture Removal From Electrolyte:

a) Deep drying of air, natural gas, alkanes, refrigerants and other gases and liquids.

b) Static drying of pharmaceutical packaging, electronic components and perishable objects.

c) The preparation and purification of Ar.

d) As a dehydrating agent in paint and fuel.

Warranty: By National Standard HG/T 2524-2010.

Free consultation during the warranty period.

Attention: Store in a cool & dry place.

Normal Package: 25KG or 30KG cartons with vacuum bags inside.
