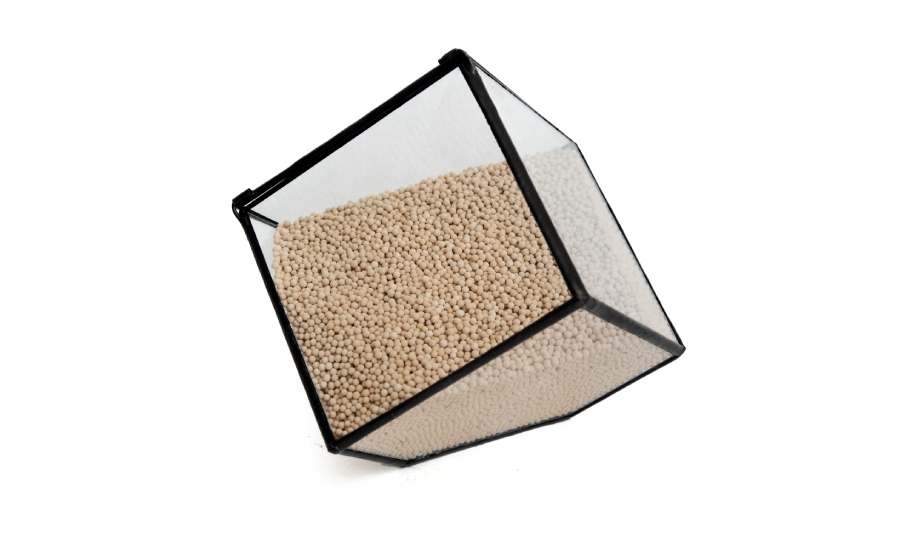

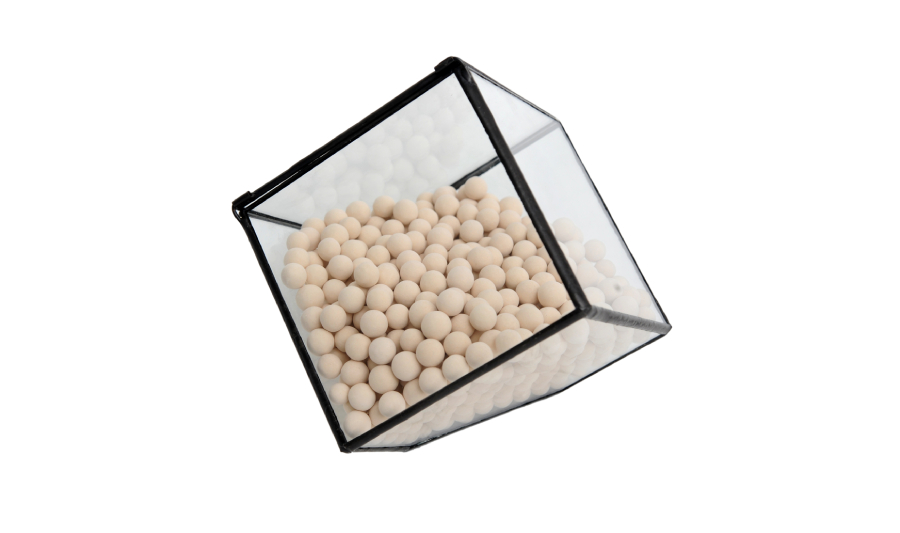

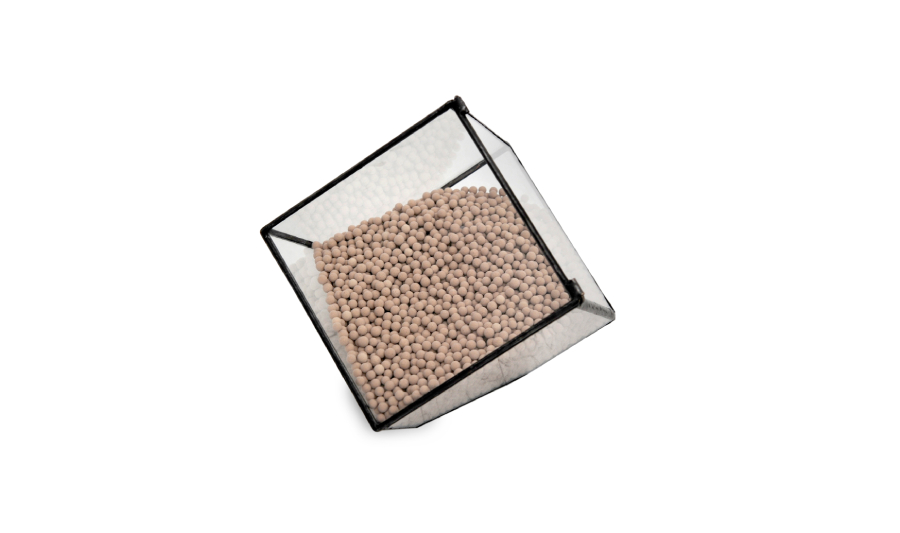

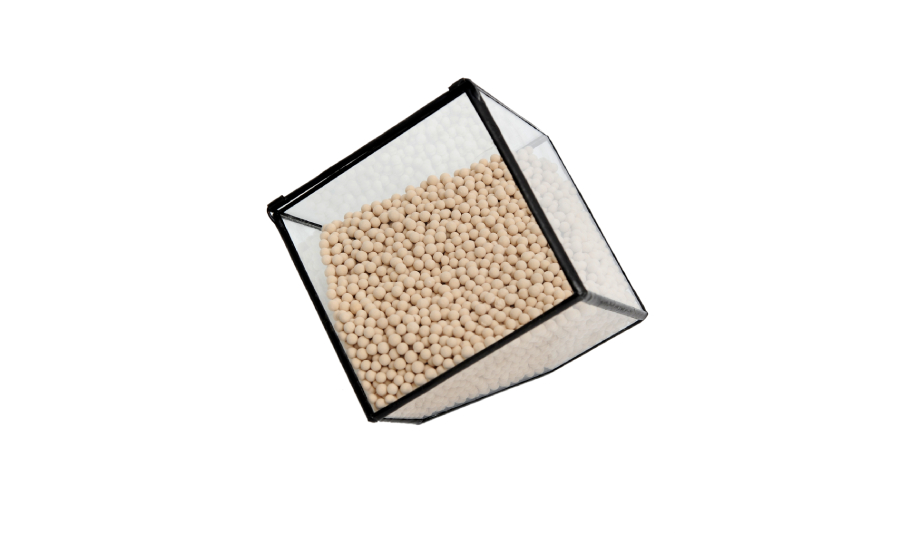

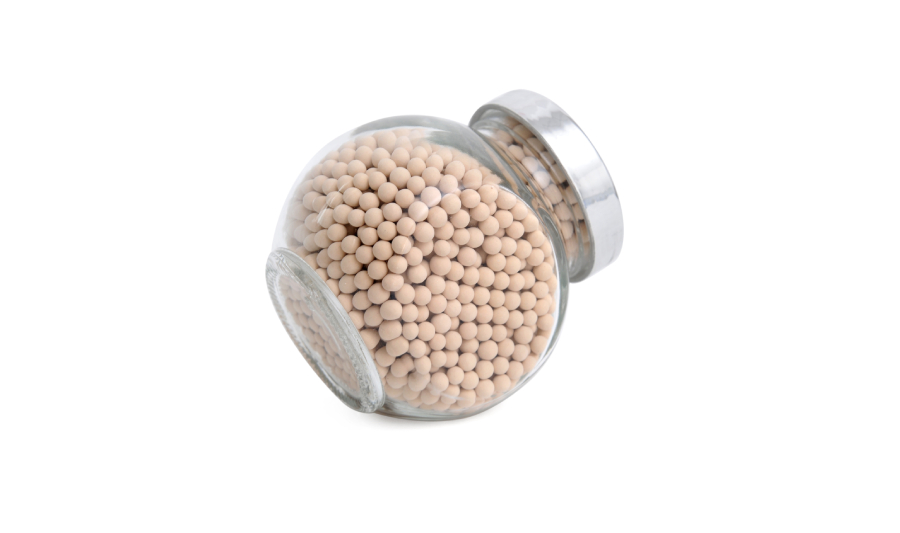

3-10L Medical Oxygen 95-98% Purity Li Molecular Sieve 13XHP Zeolite 13X Sodium Molecular Sieve

N2 Absorption Capacity	(ml/g)	≥22.00
N2/O2 Selectivity		≥6.2
Bulk Density	(g/ml)	0.63±0.03
Equilibrium Water Capacity	%	≤20
Crushing Strength	(N/pc)	≥10
LOI	(%)	≤1.0

Inquire Now Next Product

PRODUCTS DESCRIPTION

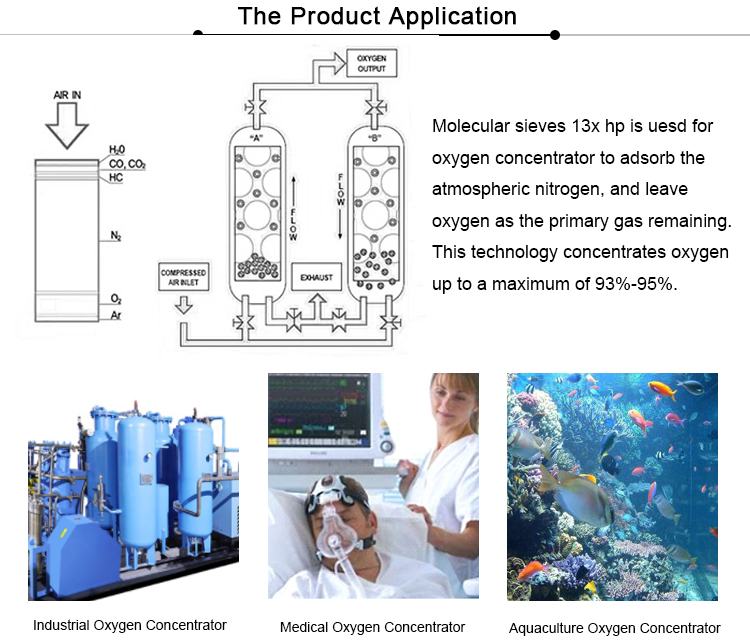

Sodium oxygen grade molecular sieve are mainly used in PSA oxygen generator for generation of high purity oxygen with the advantages of faster adsorption rate, higher oxygen production rate and longer use life. They are the substitute of 5A (CaA) type molecular sieve. Normally,Sodium molsieve is designed for portable oxygen generator 1-5L/Min, Sodium molsieve is designed for industrial oxygen plant, oxygen purity is up to 93%±3%.

13XHP Zeolite Application:

1. Sodium molsieve Industrial sieve beds used for industrial oxygen concentrator in Waste water treatment field.

2. Sodium molsieve beads used for oxygen concentrator in Aquaculture field for fish farming.

3. Sodium molsieve bead for oxygen concentrator 1-5L/Min in medical oxygen market.

4. Oxygen concentrator sieve bed material for ozone production filed.

Sodium Molecular Sieve Packing:

25kg/drum with inner aluminum foil bag, 125 kg/drum with inner aluminum foil bag

3-10L Medical Oxygen 95-98% Purity Li Molecular Sieve 13XHP Zeolite 13X Sodium Molecular Sieve

Storage:

This oxygen concentrator sieve bed material is packed in aluminum bags and sealed in 25 kg air-tight drums. Lithium & Sodium molecular sieve is very sensitive to moisture, please do not open before using. Storage temperature range: -10 ~ 45℃. Avoid direct sunlight!

Oxygen Molecular Sieve is widely used in
Industrial oxygen generating systems
Scuba oxygen tanks and bottles
Home oxygen generator equipment
Hospital oxygen supply systems
Aquaculture oxygen systems
Portable oxygen generators
Emergency oxygen systems
Ozone generators
PSA (pressure swing adsorption) oxygen generators

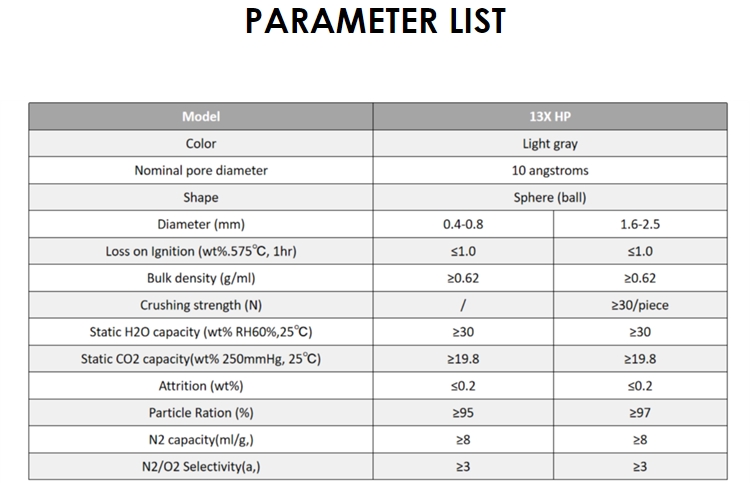

Technical Parameter:

Model	13X-HP
Color	Light gray
Nominal pore diameter	10 angstroms
Shape	Sphere (ball)
Diameter (mm)	0.4-0.8	1.6-2.5
Loss on Ignition (wt%.575℃, 1hr)	≤1.0	≤1.0
Bulk density (g/ml)	≥0.62	≥0.62
Crushing strength (N)	/	≥30/piece
Static H2O capacity (wt% RH60%,25℃)	≥30	≥30
Static CO2 capacity(wt% 250mmHg, 25℃)	≥19.8	≥19.8
Attrition (wt%)	≤0.2	≤0.2
Particle Ration (%)	≥95	≥97
N2 capacity(ml/g,)	≥8	≥8
N2/O2 Selectivity(a,)	≥3	≥3

Hand & Storage Recommendation:
It should be handled to avoid generation of dusty conditions at the workplace. Storage in a dry warehouse is recommended. Open packages should be resealed to prevent contamination and adsorption of water or other gases and vapors. The material in bag-in-box should be used within 12 months,while bag-in-steel drum should be used within 24 months.
